AF-09225S-EP24
Quiet Fan Quiet Life!
Observation of Whale's Fin -- Inspiration of A Surprise Fan

The innovative design of Surprise cooling fan is inspired by the humpback whale. The dots on the fan blades of Surprise cooler functions the same way as the protrusions on the pectoral fins of the humpback whale. The dots on the fan blades increase the surface area of the blades, and thus move higher volume of air through the air flow courses. What's more, the bigger fan blades which resemble the whale's fins have a more effective angle of attack of about 40 degrees more than conventional cooling fans.
Click below to view different view

Specification
Fan Dimension : 92x92x25 (mm) Bearing Type: Sleeve available
Rated Voltage:12 (V) Acoustic Noise: 17.5~32.5 dB(A)
Rated Current : 0.26 (A) Life Expectation: 40000 hrs
Power Input : 3.12 (W) Connector : 4 pin PWM
Fan Speed : 900~2400 + - 10% rpm Weight : 86 (g)
Max. Air Flow Rate: 21.45~54.6 CFM Screw holes pitch : 71.5 x 71.5 (mm)
Max. Air Static Pressure: 0.4~2.0mmH2O

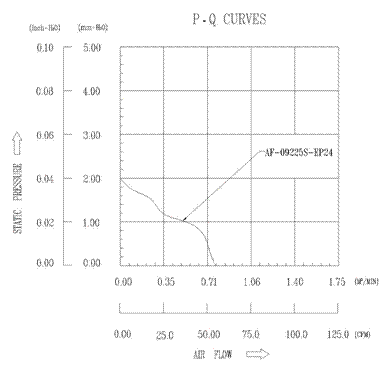

P-Q Curve
