| Specification |
| Fan Dimension : 120x120x25 (mm) |

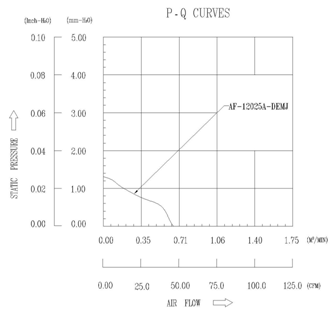

Max. Air Static Pressure: 1.28mmH2O
|
| Rated Voltage：12 (V) |
Bearing Type: Extended Sleeve Bearing
|
| Started Voltage : 7 (V)
|
Acoustic Noise: 17 dB(A)
|
| Rated Current : 0.2 (A)
|
Life Expectation: 50000 hrs
|
| Power Input : 2.4 (W)
|
Connector : 3 pin + 4 pin
|
| Fan Speed : 1600 + - 10% rpm
|
Weight : 107 (g)
|
| Max. Air Flow Rate: 46.6 CFM
|
Screw holes pitch : 105 x 105 (mm)
|
