AF-12025A-WEMJ
SHIZUKA V.s white whale
ForceTake introduced the 12cm series computer fan, and phased in a sickle-shaped fan blade for low noise design.
Click below to view different view

Specification
Fan Dimension : 120x120x25 (mm) Max. Air Static Pressure: 1.26mmH2O
Rated Voltage:12 (V) Bearing Type: Extended Sleeve Bearing
Started Voltage : 9 (V) Acoustic Noise: 18 dB(A)
Rated Current : 0.3 (A) Life Expectation: 50000 hrs
Power Input : 3.6 (W) Connector : 3 pin + 4 pin
Fan Speed : 1600 + - 10% rpm Weight : 148 (g)
Max. Air Flow Rate: 57.03 CFM Screw holes pitch : 105 x 105 (mm)

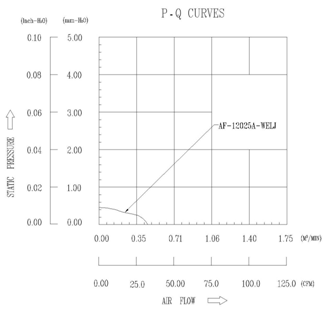

P-Q Curve
