MARS
● PN : CL-R1000-JR
● Ram Cooler
● Application: DDR, DDR2, DDR3 RAM
Click below to view different view
Features
● Easy installation and high thermal conductivity, Mars RAM cooler is compatible with DDR2/DDR3 RAM.
● Aluminum extruded heat sink provides more heat dissipation surface.
● Superb U-shape heat pipe with high density fins maximize the heat dissipation performance.
● Angle adjustable design enhances the mechanical compatibility.
● Two coolers packing, for dual-memory-module systems and user's friendly.
Specification
● Application: DDR, DDR2, DDR3 RAM
● Demension : 145( L ) x 10 ( W ) x 62 ( H ) mm
● Heat Spreader: Aluminum
● Thermal Pipe: 6mm Heat-pipe
● Weight: 76g ( one pcs )
Application View
Installation Guide

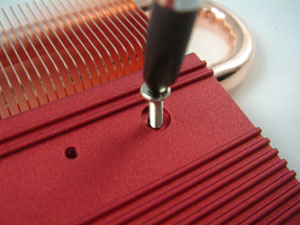

1st Step :
Loosen the screws of the heat sink by using crossed screw driver and separate the heat sink with heat-pipe module.

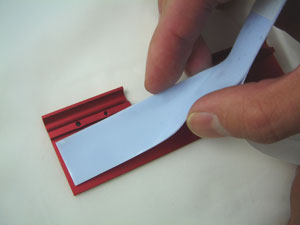

2nd Step :
Paste the thermal pad onto each side of the memory module.

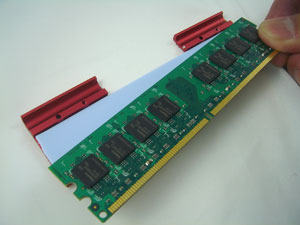

3rd Step :
Past the RAM onto the thermal pad.

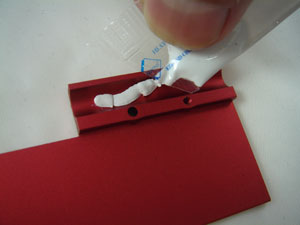

4th Step:
Apply a thin layer of thermal grease in the heat-pipe ditch of the sink.

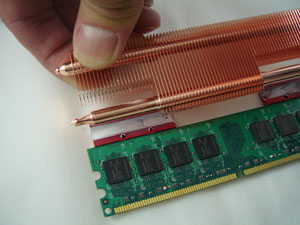

5th Step :
Assemble the heat sink with the thermal module.

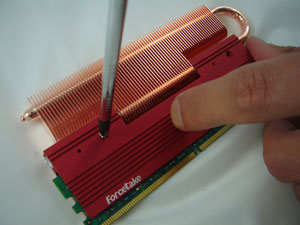

6th Step :
Secure the heat sink and the heat-pipe module with RAM.
